IPC-HFW81230E-Z – Telecamera Dahua 4K Ultra HD – 12 Megapixel – Varifocale 4,1-16,4 mm – Codec H265 H264



900.00 +IVA

Descrizione

IPC-HFW81230E-Z – Telecamera Dahua 4K Ultra HD – 12 Megapixel – Varifocale 4,1-16,4 mm – Codec H265 H264



1/1.7” 12Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 20fps@12M(4000×3000),25/30fps@4K(3840×2160)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm motorized lens
> Max. IR LEDs Length 50m

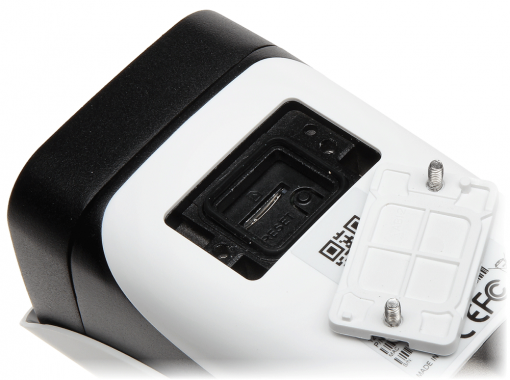

> Micro SD memory,IP67,IK10,PoE



VANTAGGI:

Compressione Video H265 HEVC – High Efficency Video Codec
Accurata gestione del Motion Detection
Possibilità di programmare 4 aree separate con sensibilità diverse per il Motion Detection
Bassissima occupazione di banda di rete Ethernet
20Frame per secondo alla massima Risoluzione – 12 Megapixel 4K – Ultra HD
Completa Gestione da Palmare, Tablet, PC
Sistemi supportati: Android, Apple, Windows

software PSS e DMSS, CloudP2P, Smart Detection



IPC-HFW81230E-Z – Telecamera Dahua 4K Ultra HD – 12 Megapixel – Varifocale 4,1-16,4 mm – Codec H265 H264

ulteriori informazioni su: www.dahuasecurity.com/

Camera
Image Sensor1/1.7” 12Megapixel progressive scan CMOS
Effective Pixels4000(H)x3000(V)
RAM/ROM1024MB/128MB
Scanning SystemProgressive
Minimum Illumination0.02Lux/F1.53( Color), 0Lux/F1.53(IR on)
S/N RatioMore than 50dB
IR DistanceDistance up to 50m(164ft)
IR On/Off ControlAuto/ Manual
IR LEDs4
Lens
Lens TypeMotorized /Auto Iris(HALL)
Mount TypeBoard-in
Focal Length4.1~16.4mm motorized
Max. ApertureF1.53
Angle of ViewH: 85°~35°, V:63°~26°
Optical Zoom4x
Focus ControlMotorized
Close Focus Distance0.5m(1.64ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0?~360?; Tilt:0?~90?; Rotation:0?~360?
Intelligence
IVS (optional)Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, People Counting, Heat Map
Video
CompressionH.265/H.264
Streaming Capability3 Streams
Resolution12M(4000x3000)/ 4K(3840x2160)/ 6M(3072x2048)/ 5M(2560x1920)/
3M(2048x1536)/ 3M(2304x1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/
720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240)
Frame RateMain Stream: 12M(1~20fps)/ 4K(1~25/30fps)
Sub Stream: D1 (1 ~ 25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 24~ 16384Kbps
H.265: 14~ 9984Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR/ SSA
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization (EIS)Support
Smart IRSupport
DefogSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/G.711Mu/AAC/ G.726
Network
EthernetRJ-45 (100/1000Base-T)
ProtocolHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge StorageNAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
CertificationsCE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
RS485N/A
Alarm2/1 channel In/Out
Electrical
Power SupplyDC12V, PoE (802.3at)(Class 4)
Power Consumption<13W
Environmental
Operating Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Strorage Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions273.2mm×95.0mm×96.4mm (10.76”×3.74”×3.79”)
Net Weight1.12Kg (2.47lb)
Gross Weight1.52Kg (3.35lb)
